Transformers

Hand made in the UK

All our transformers are carefully wound and assembled by hand with the finest materials available. Each transformer is made the old fashioned time consuming way including inter-winding tape, faraday shields, interlaced laminations, silver content solder and finally varnished They are used the world over and are the number one choice for a number of microphone manufacturers. We offer a no quibble refund as we are confident you will not be disappointed. Discount for multiples. Custom transformers wound - ask for details. TRANSFORMER STORE Use drop down menu for payment to UK and other countries RIBBON MICROPHONE TRANSFORMERS FAB 4196. This best selling transformer is suitable for modifying cheap ribbon microphones like the MXL and Apex models. The core is hand stacked using the finest available Permaloy 80% nickel laminations for maximum response. The finest copper wire is used for optimum output. Colour coded wires for easy identification. Comes with complete instructions. Turns Ratio 1:48 Primary Input DCR 0.07Ω Secondary Output DCR >88Ω +/- 5% Laminations Permaloy 80% Nickel Weight 34 grams Dimensions 26 x 19 x 19 Compliance RoHS

Id, in ipsum in irure eu ut

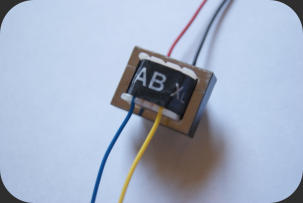

FAB XL The XL was designed to provide extra output from a transformer the same size as the 4196 - the XL standing for eXtra Loud. With a hand stacked core the sound will satisfy the most demanding audio professional. Colour coded wires. Ideal for modding older ribbon microphones that contain short ribbon motors. Comes with complete instructions. Turns Ratio 1:54 Primary Input DCR 0.07Ω Secondary Output DCR >100Ω +/- 5% Laminations Permaloy 80% Nickel Weight 34 grams Dimensions 26 x 19 x 19 Compliance RoHS

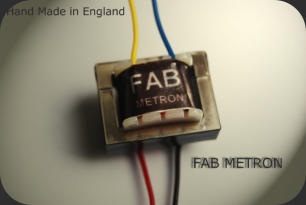

FAB METRON New & Improved! Made from the finest materials available the new FAB Metron is for those who prefer a

lower turn ratio and lower secondary DCR. With a superb smooth vintage sound the Metron delivers like all FAB transformers. Colour

coded long length wires to suit most ribbon motors. Full technical details included.

Turns Ratio 1:38 Primary Input DCR 0.07Ω Secondary Output DCR <60Ω +/- 5% Laminations Permaloy 80% Nickel Weight 34 grams Dimensions 26 x 19 x 19 Compliance RoHS
Select cost to other countries
Select cost to other countries
Select cost to other countries
FAB V8F The FAB V8F is based on the classic Neuman BV8F for the U47 FET microphone. It is wound to the same original Neuman specification on a custom made 4 chamber bobbin. Made with or without Faraday shielding (shown with). The transformer is also varnished for extra stability. Comes with complete instructions
£165.00 Shipping Included
FAB V8 The FAB V8 is based on the classic Neuman BV8 for the legendary U47 valve microphone. It is wound to the same original Neuman specification on a custom made 4 chamber bobbin. Made with or without Faraday shielding (shown with). The transformer is also varnished for extra stability. Comes with complete instructions.
£145.00 Shipping Included
Turns Ratio 9:1 Primary Input DCR 920Ω +/- 5% Secondary Output DCR 18Ω +/- 5% Laminations Permaloy 80% Nickel Weight 108 grams Dimensions 42 x 35 x 25 Compliance RoHS
Turns Ratio 6.5:1 Primary Input DCR 674Ω +/- 5% Secondary Output DCR 18Ω +/- 5% Laminations Permaloy 80% Nickel Weight 108 grams Dimensions 42 x 35 x 25 Compliance RoHS
FAB V11 The FAB V11 is based on the classic Neuman BV11 for the M49 valve microphone. It is wound to the same original Neuman specification on a custom made 4 chamber bobbin. Made with or without Faraday shielding (shown with). The transformer is also varnished for extra stability. Comes with complete instructions
£165.00 Shipping Included
Turns Ratio 10:1 Primary Input DCR 1032Ω +/- 5% Secondary Output DCR 18Ω +/- 5% Laminations Permaloy 80% Nickel Weight 108 grams Dimensions 42 x 35 x 25 Compliance RoHS
FAB MICROPHONES

OTHER TRANSFORMERS

Select cost to other countries
FAB 2503 The FAB 2503 is a quadfilar wound transformer for use in building a 312 card. This has the exact same sonic character of the original. Built to the original spec with high grade silicon laminations. The transformer is also varnished for extra stability. The transformer is also suitable for use in the 500 series modules , 325 card and other equipment. The laminations have holes for pcb mounting.
Turns Ratio 1:1 Primary Input DCR 8Ω +/- 5% Secondary Output DCR 8Ω +/- 5% Laminations Silicon Weight 108 grams Dimensions 49 x 41 x 34 Compliance RoHS
FAB 2623 The FAB 2623 is a trifilar wound transformer for use in classic consoles of the 70’s. This has the exact same sonic character of the original. Built to the original spec with high grade silicon laminations. The transformer is varnished for extra stability. The transformer is suitable for use in the 500 series and other equipment needing this specification. The laminations have holes for pcb mounting.
Turns Ratio 1:1 1:2 Primary Input DCR 14.4Ω +/- 5% Secondary Output DCR 24.4Ω +/- 5% Laminations Silicon Weight 100 grams Dimensions 42 x 34 x 30 Compliance RoHS
Select cost to other countries
© FAB MICROPHONES 2021
P

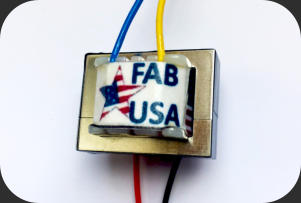

FAB USA - LIMITED EDITION The FAB USA is our tribute to the great American RCA ribbon microphones made by Harry Olsen. This new transformer is our best yet and has a very low primary DCR and high output. Each transformer is numbered and is a limited run of 100. Comes with complete instructions. Primary input DCR 0.04Ω +/- 5% Secondary Output DCR 112Ω +/- 5% Laminations Permaloy 80% nickel Weight 40 grams Dimensions 26 x 19 x 19 Numbered 001 to 100
FAB USA
Valve and Condenser Microphone Transformers
CONTACT FOR SPECIAL OFFERS AND DEALS ON MANY TRANSFORMERS!
Cost to other countries

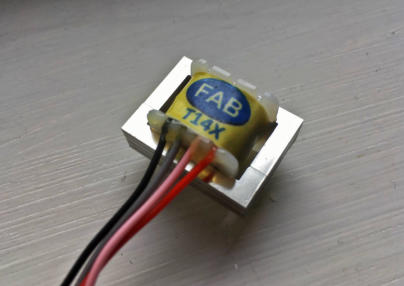

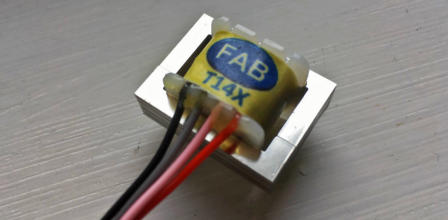

FAB T14X After over 6 months of tests and development we introduce a transformer to bring out the full potential of the ELA M 251 or C12 microphones. This transformer give’s you that creamy silky stunning sound that you are looking for. The standard T14’s available for the DIY market simply don’t compare. This is an improved transformer specifically designed for this circuit. It is not a drop in replacement as this is a slightly larger transformer but will fit in most DIY microphone bodies. This transformer is already in use by 2 microphone manufacturers. Get yours now and transform your mic. Laminations 80% Nickel Turns ratio 12 to 1 Size 26 x 19 x 19
FAB T14X
© FAB MICROPHONES 2021

Transformers

Hand made in the UK

All our transformers are carefully wound and assembled by hand with the finest materials available. Each transformer is made the old fashioned time consuming way including inter-winding tape, faraday shields, interlaced laminations, silver content solder and finally varnished They are used the world over and are the number one choice for a number of microphone manufacturers. We offer a no quibble refund as we are confident you will not be disappointed. Discount for multiples. Custom transformers wound - ask for details. TRANSFORMER STORE Use drop down menu for payment to UK and other countries RIBBON MICROPHONE TRANSFORMERS FAB 4196. This best selling transformer is suitable for modifying cheap ribbon microphones like the MXL and Apex models. The core is hand stacked using the finest available Permaloy 80% nickel laminations for maximum response. The finest copper wire is used for optimum output. Colour coded wires for easy identification. Comes with complete instructions. Turns Ratio 1:48 Primary Input DCR 0.07Ω Secondary Output DCR >88Ω +/- 5% Laminations Permaloy 80% Nickel Weight 34 grams Dimensions 26 x 19 x 19 Compliance RoHS

Id, in ipsum in irure eu ut

FAB XL The XL was designed to provide extra output from a transformer the same size as the 4196 - the XL standing for eXtra Loud. With a hand stacked core the sound will satisfy the most demanding audio professional. Colour coded wires. Ideal for modding older ribbon microphones that contain short ribbon motors. Comes with complete instructions. Turns Ratio 1:54 Primary Input DCR 0.07Ω Secondary Output DCR >100Ω +/- 5% Laminations Permaloy 80% Nickel Weight 34 grams Dimensions 26 x 19 x 19 Compliance RoHS

FAB METRON New & Improved! Made from the finest

materials available the new FAB Metron is for those who prefer

a lower turn ratio and lower secondary DCR. With a superb

smooth vintage sound the Metron delivers like all FAB

transformers. Colour coded long length wires to suit most

ribbon motors. Full technical details included.

Turns Ratio 1:38 Primary Input DCR 0.07Ω Secondary Output DCR <60Ω +/- 5% Laminations Permaloy 80% Nickel Weight 34 grams Dimensions 26 x 19 x 19 Compliance RoHS
Select cost to other countries
Select cost to other countries
Select cost to other countries
FAB V8F The FAB V8F is based on the classic Neuman BV8F for the U47 FET microphone. It is wound to the same original Neuman specification on a custom made 4 chamber bobbin. Made with or without Faraday shielding (shown with). The transformer is also varnished for extra stability. Comes with complete instructions
£165.00 Shipping Included
FAB V8 The FAB V8 is based on the classic Neuman BV8 for the legendary U47 valve microphone. It is wound to the same original Neuman specification on a custom made 4 chamber bobbin. Made with or without Faraday shielding (shown with). The transformer is also varnished for extra stability. Comes with complete instructions.
£145.00 Shipping Included
Turns Ratio 9:1 Primary Input DCR 920Ω +/- 5% Secondary Output DCR 18Ω +/- 5% Laminations Permaloy 80% Nickel Weight 108 grams Dimensions 42 x 35 x 25 Compliance RoHS
Turns Ratio 6.5:1 Primary Input DCR 674Ω +/- 5% Secondary Output DCR 18Ω +/- 5% Laminations Permaloy 80% Nickel Weight 108 grams Dimensions 42 x 35 x 25 Compliance RoHS
FAB V11 The FAB V11 is based on the classic Neuman BV11 for the M49 valve microphone. It is wound to the same original Neuman specification on a custom made 4 chamber bobbin. Made with or without Faraday shielding (shown with). The transformer is also varnished for extra stability. Comes with complete instructions
£165.00 Shipping Included
Turns Ratio 10:1 Primary Input DCR 1032Ω +/- 5% Secondary Output DCR 18Ω +/- 5% Laminations Permaloy 80% Nickel Weight 108 grams Dimensions 42 x 35 x 25 Compliance RoHS
FAB MICROPHONES
Other Transformers
FAB 2503 The FAB 2503 is a quadfilar wound transformer for use in building a 312 card. This has the exact same sonic character of the original. Built to the original spec with high grade silicon laminations. The transformer is also varnished for extra stability. The transformer is also suitable for use in the 500 series modules , 325 card and other equipment. The laminations have holes for pcb mounting.
Turns Ratio 1:1 Primary Input DCR 8Ω +/- 5% Secondary Output DCR 8Ω +/- 5% Laminations Silicon Weight 108 grams Dimensions 49 x 41 x 34 Compliance RoHS
Select cost to other countries
FAB 2623 The FAB 2623 is a trifilar wound transformer for use in classic consoles of the 70’s. This has the exact same sonic character of the original. Built to the original spec with high grade silicon laminations. The transformer is varnished for extra stability. The transformer is suitable for use in the 500 series and other equipment needing this specification. The laminations have holes for pcb mounting.
Turns Ratio 1:1 1:2 Primary Input DCR 14.4Ω +/- 5% Secondary Output DCR 24.4Ω +/- 5% Laminations Silicon Weight 100 grams Dimensions 42 x 34 x 30 Compliance RoHS
Select cost to other countries
FAB USA - LIMITED EDITION The FAB USA is our tribute to the great American RCA ribbon microphones made by Harry Olsen. This new transformer is our best yet and has a very low primary DCR and high output. Each transformer is numbered and is a limited run of 100. Comes with complete instructions. Primary input DCR 0.04Ω +/- 5% Secondary Output DCR 112Ω +/- 5% Laminations Permaloy 80% nickel Weight 40 grams Dimensions 26 x 19 x 19 Numbered 001 to 100
FAB USA
Valve and Condenser Transformers
CONTACT FOR SPECIAL OFFERS AND DEALS ON MANY TRANSFORMERS

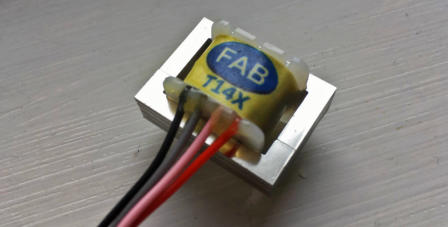

FAB T14X After over 6 months of tests and development we introduce a transformer to bring out the full potential of the ELA M 251 or C12 microphones. This transformer give’s you that creamy silky stunning sound that you are looking for. The standard T14’s available for the DIY market simply don’t compare. This is an improved transformer specifically designed for this circuit. It is not a drop in replacement as this is a slightly larger transformer but will fit in most DIY microphone bodies. This transformer is already in use by 2 microphone manufacturers. Get yours now and transform your mic. Laminations 80% Nickel Turns ratio 12 to 1 Size 26 x 19 x 19
